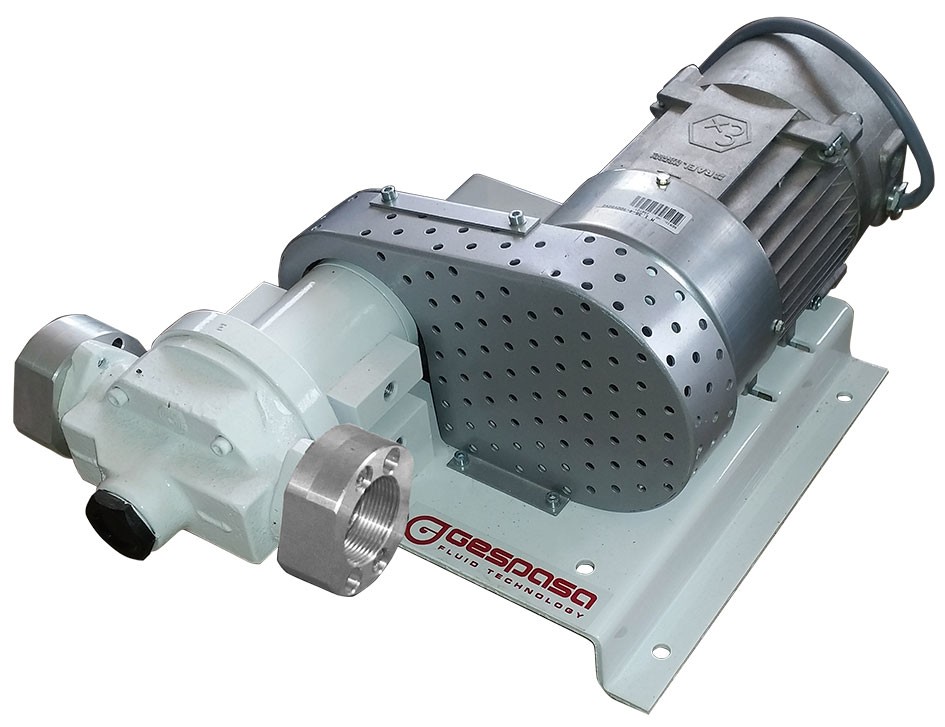

The BAG-800 self-priming fuel pump is designed for high-flow, hazardous-area fuel transfer, making it ideal for industrial and ATEX-regulated environments. Engineered with eccentric self-adjusting blades and a recirculation bypass, this pump ensures consistent, high-volume fuel flow while operating safely in potentially explosive atmospheres. Available in single-phase (230V) and three-phase (230/400V) models, the BAG-800 is built for continuous-duty performance in demanding conditions.

Performance & Efficiency
> Flow Rate: 100-150 L/min free flow
> Power Consumption: 3.3-5.8 A (230/400V AC) | 5.7-6.3 A (230V AC)

Motor Options:
> 1 kW, 230/400V AC, 50 Hz, three-phase
> 1 kW, 230V AC, 50 Hz, single-phase
> Operation Speed: 1,410 rpm
> Bypass Pressure: 3 bar

Explosionproof & ATEX Certified
> ATEX Classification: II 2G EExd IIB T3
> Certification: TÜV IT 11 ATEX 012X
> Explosionproof Motor: Built for hazardous environments
> Operating Temperature: 0ºC to +50ºC

Industrial-Grade Durability
> Continuous Duty: S1-rated for round-the-clock performance
> Inlet/Outlet Connections: 1 1/2″ BSP for secure installation
> Corrosion-Resistant: Built for long-term reliability in demanding environments

Size and Weight (approx.)
Dimesions: 400x330x220 mm (length x width x height)
Weight: 33.5 kg

Designed for bulk fuel transfer in ATEX-rated zones, the BAG-800 fuel pump is a high-performance, explosion-proof solution for industries requiring safe and efficient fuel management.
