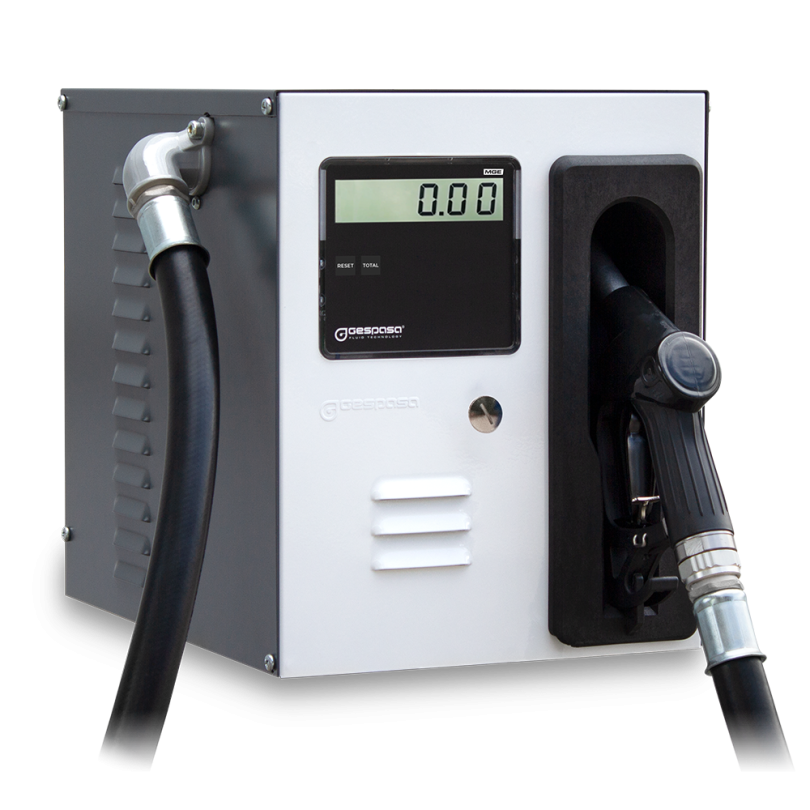

- Compact supply kits with high accuracy gear meter and electronic display with lithium battery.
- Automatic pump starting and stopping through the nozzle holder switch.
Composed of:
CHASSIS:
- made of steel
- interior and exterior treatment to protect against corrosion
- high epoxid paint
- weatherproof
PUMP:
- self-suction with self-adjusting blades
PULSER:
- MGI-110 90º Reeds · Accuracy ±0.5 %
DISPLAY
- Tropicalised electronics. With standard lithium battery of approx. 4 years of life
NOZZLE:
- automatic
HOSE:
- 4 m delivery diesel hose double layer, with adapters in both ends
COMPACT 50E-12 V · Electronic supply kit
28240-CF00000
COMPACT 50E-230 V · Electronic supply kit
28052-CF00000
COMPACT 75E-230 V · Electronic supply kit
28290-CF00000
COMPACT 90E-12 V · Electronic supply kit
28250-CF00000
COMPACT 100E-230 V · Electronic supply kit
28300-CF00000
| Voltage | Electronic meter | Automatic nozzle | Flow (l/min) | Size and weight (approx.) | ||
|---|---|---|---|---|---|---|
| COMPACT 50E-12 | 12 VDC | MGE-110 | PA-60 | 35-45 | 405x460x405 mm | 17.5 kg |
| COMPACT 50E-230 | 230 VAC | PA-60 | 40-50 | 20.5 kg | ||
| COMPACT 75E-230 | 230 VAC | PA-80 | 65-70 | 20.5 kg | ||
| COMPACT 90E-12 | 12 VDC | PA-80 | 70-80 | 37 kg | ||
| COMPACT 100E-230 | 230 VAC | PA-120 | 75-85 | 37.5 kg | ||
Optional:
– Hexagonal pedestal base (COMPACT) (height 1 m)
800400014
– F1″ aluminium flange kit
800003029
