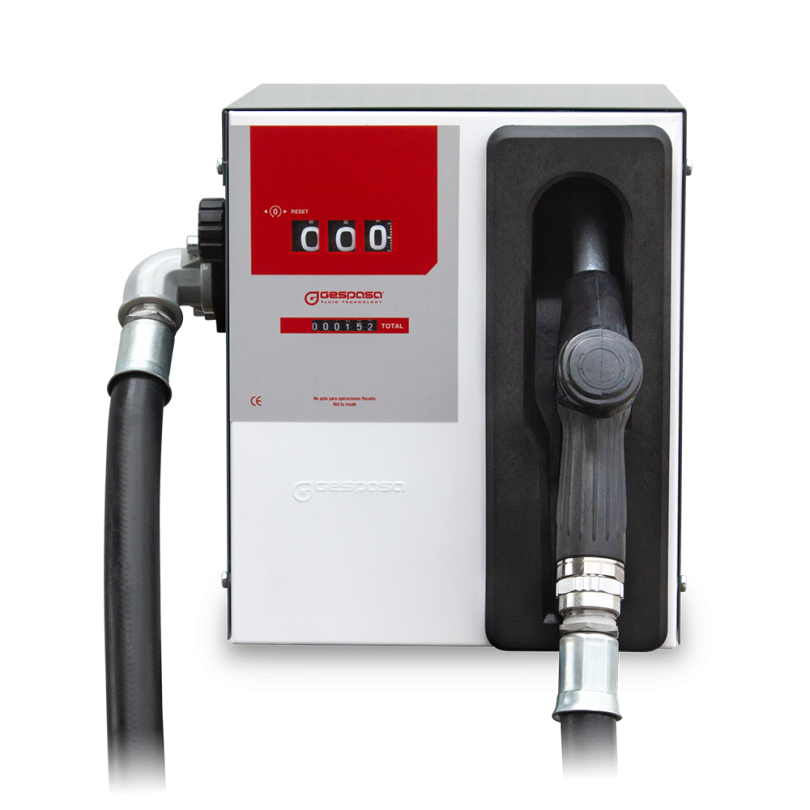

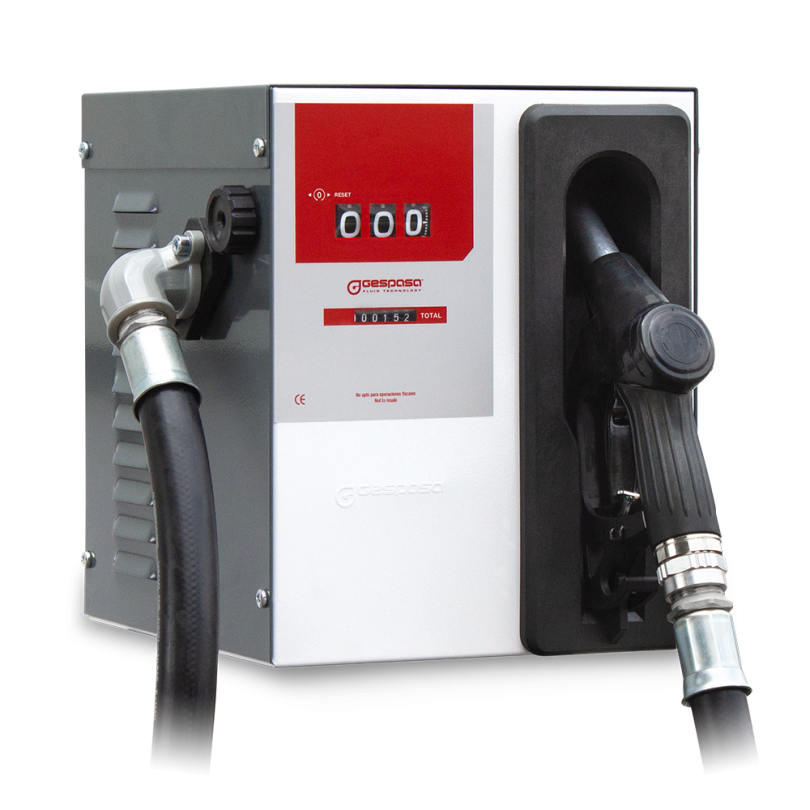

Mechanical compact supply kits suitable for the diesel or petrol transfer to own consumption vehicles.
Composed of:
CHASSIS:
- made of steel
- interior and exterior treatment to protect against corrosion
- high epoxid paint
- weatherproof
PUMP:
- self-suction with self-adjusting blades
METER:
- MG-80 mechanical meter · Accuracy ±1 %
NOZZLE:
- automatic
HOSE:
4 m delivery diesel hose double layer, with adapters in both end
DIESEL
COMPACT 50M-12 V · Mechanical supply kit
28110-CF00000
- IRON-50 12 VDC · Flow: 35-45 l/min
Size and weight (approx.):
- Dim.: 380x345x360 mm (LxWxH)
- Weight: 18 kg
COMPACT 50M-230 V · Mechanical supply kit
28040-CF00000
- IRON-50 230 VAC · Flow: 40-50 l/min
Size and weight (approx.):
- Dim.: 380x345x360 mm (LxWxH)
- Weight: 21 kg
COMPACT 75M-230 V · Mechanical supply kit
28270-CF00000
- IRON-75 230 VAC · Flow: 65-70 l/min
Size and weight (approx.):
- Dim.: 380x345x360 mm (LxWxH)
- Weight: 21 kg
COMPACT 90M-12 V · Mechanical supply kit
28190-CF00000
- AG-90 12 VDC · Flow: 70-80 l/min
Size and weight (approx.):
- Dim.: 383x345x360 mm (LxWxH)
- Weight: 28.5 kg
COMPACT 100M-230 V · Mechanical supply kit
28280-CF00000
- AG-100 230 VAC · Flow: 75-85 l/min
Size and weight (approx.):
- Dim.: 383x435x360 mm (LxWxH)
- Weight: 32 kg
PETROL
COMPACT 50M-12 V Ex · Mechanical supply kit
28140-CF00001
COMPACT 50M-230 V Ex · Mechanical supply kit
28140-CF00000
COMPACT 800M-230 · Mechanical supply kit
28150-CF00000
| Petrol | Voltage | Mechanical meter (Viton) | Automatic nozzle | Flow (l/min) | Size and weight (approx.) | |
|---|---|---|---|---|---|---|
| COMPACT 50M-12 Ex | 12 VDC | MG-80V | PA-80 | 40-50 | 383x345x360 mm | 28,5 kg |
| COMPACT 50M-230 Ex | 230 VAC | |||||
| COMPACT 800M-230 | 230 VAC | 70-80 | 32 kg | |||
Optional:
– Hexagonal pedestal base (COMPACT) (height 1 m)
800400014
– F1″ aluminium flange kit
800003029
– 4 m Ø19 mm antistatic petrol hose with adapters in both ends
803406101
