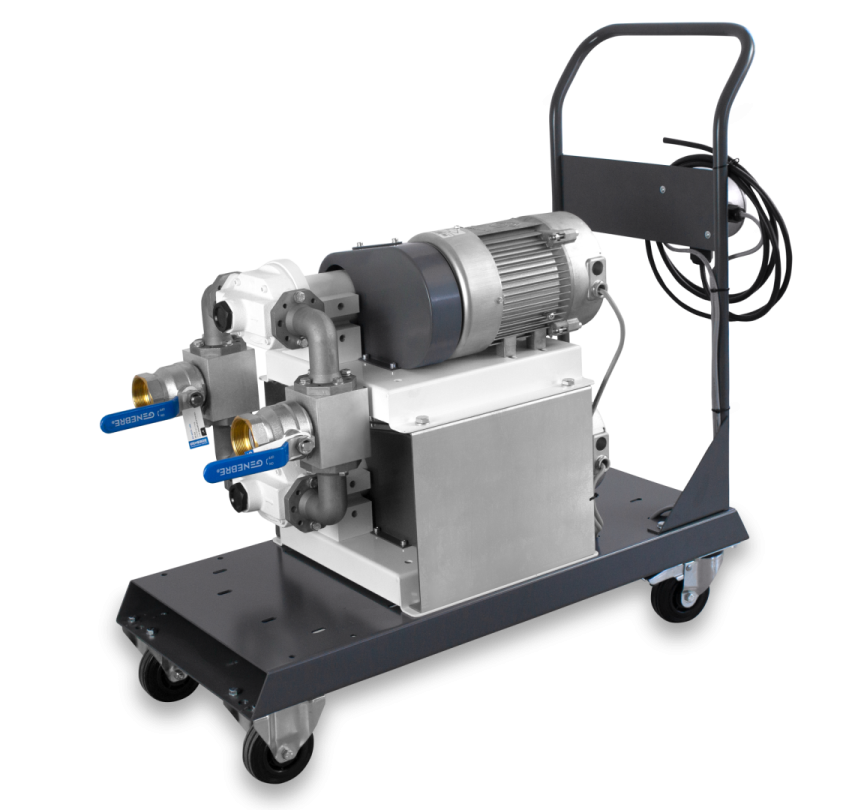

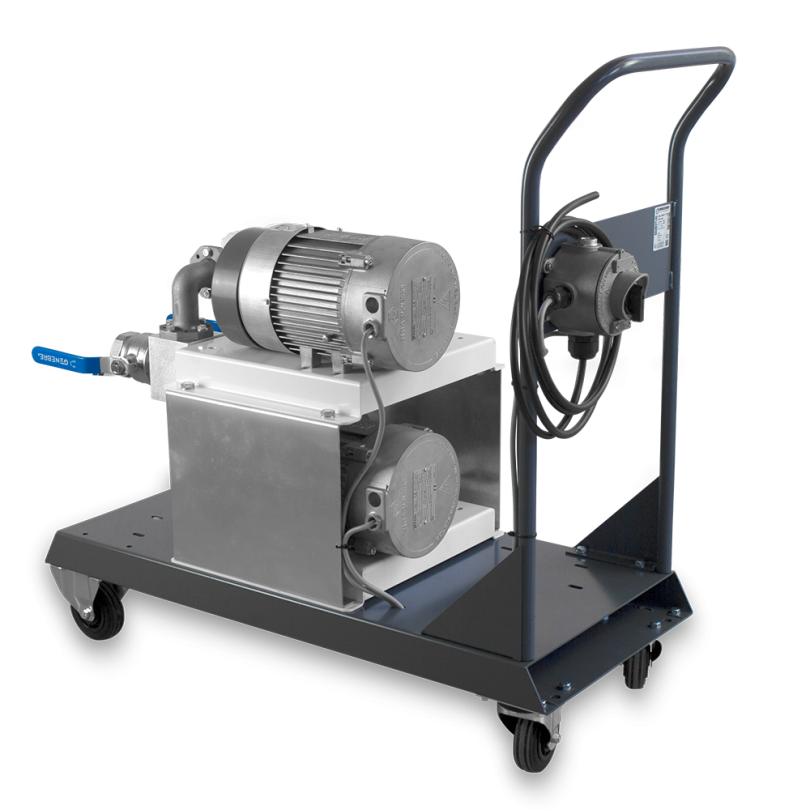

EExd high flow pump kit assembled in a mobile bedplate with wheels

It is composed of:

• 2 units BAG-800 Self-suction-self-priming pumps · Eccentric with self-adjusting blades
  • Bypass recirculation system
  • Free flow: 260 l/min
  • Consumption: 12 A
• 2 motor units:
  • 1 kW 230 VAC 50 Hz single-phase
  • Explosionproof (ATEX)
  • 1,410 rpm
  • With thermal protector
  • S1 continuous duty
  • Motor zone classification: II 2G EExd IIB T3
  • Motor Certificate: TÜV IT 11 ATEX 012X
• Inlet/outlet connection: 2″ (BSP) with ball valve
• Max. pressure: 2.5 bar
