CONNECTION TO PC
- The GK-7 own consumption is a equipment suitable for the supply control, allowing its use only to authorized personnel.
- Depending on the security level that you want to implement, we can identify the user and/or the vehicle through codes and/or identification key.
- Supply with or without preset litres
- The GK-7 controller in TOTEM column chassis, to be directly fixed on the ground without bases or additional accessories, is made of steel. It can placed in the outside; then the controller is protected and it is long-lasting because of the special interior and exterior treatment against corrosion.
We have the following GK-7 versions to customize installations of different sizes:
60 users/vehicles · 200 services
GK-7 · 60 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
GK-7 · 60 users + TOTEM · OWN CONSUMPTION CONTROLLER
GK-7 · 60 users + METAL BOX · OWN CONSUMPTION CONTROLLER
130 users/vehicles · 500 services
GK-7 · 130 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
GK-7 · 130 users + TOTEM · OWN CONSUMPTION CONTROLLER
GK-7 · 130 users + METAL BOX · OWN CONSUMPTION CONTROLLER
* Communication with key maximum 100 users/vehicles and 200 services
1,000 users/vehicles · 1,000 services
GK-7 · 1,000 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
GK-7 · 1,000 users + TOTEM · OWN CONSUMPTION CONTROLLER
GK-7 · 1000 users + METAL BOX · OWN CONSUMPTION CONTROLLER
(+) internal THERMAL TICKET PRINTER
(+) PROTECTION SUNSHIELD
OPTIONAL IDENTIFICATION SYSTEMS
(+) Proximity card reader
(+) Magnetic card reader
(+) TAG reader with spiral cable
Size and weight (approx.):

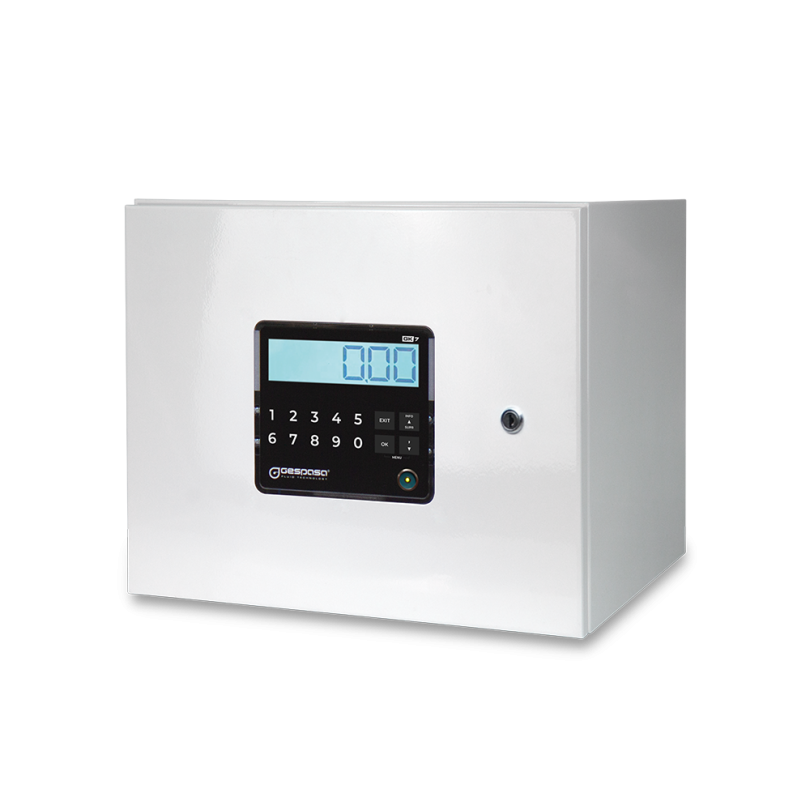

GK-7 + METALLIC CABINET
- Dim.: 550x400x410 mm (length x width x height)
- Weight: 17 kg

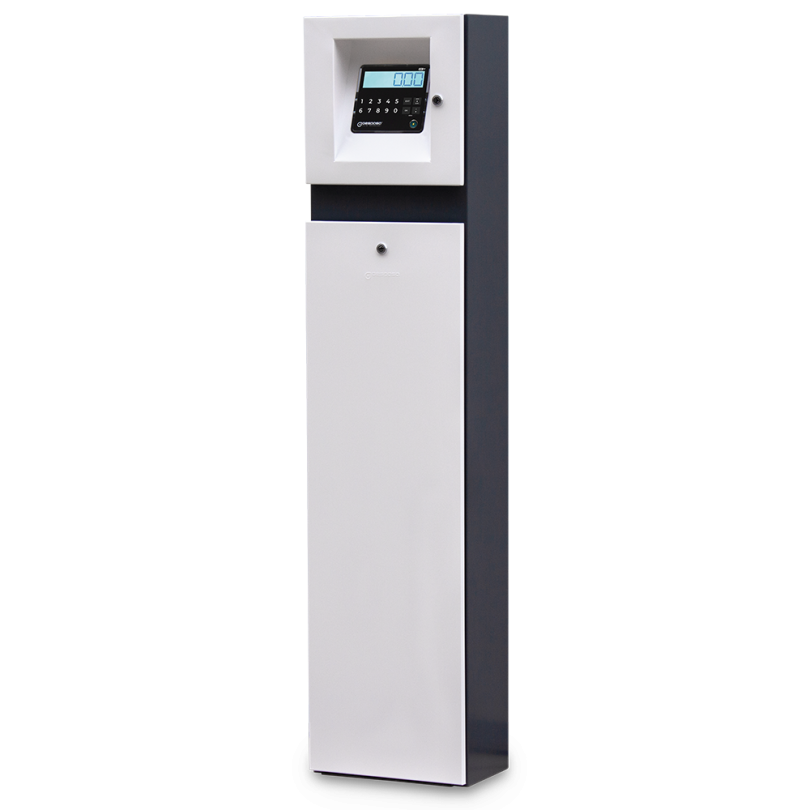

GK-7 + TOTEM
- Dim.: 305x280x1550 mm (length x width x height)
- Weight: 45 kg

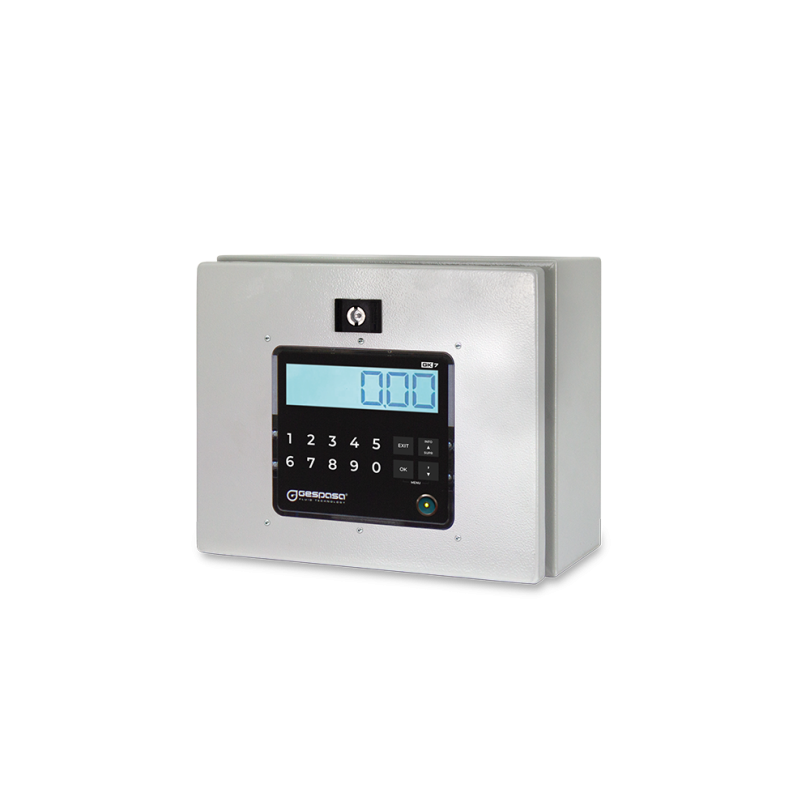

GK-7 + METALLIC BOX
- Dim. 300x152x248 mm (length x width x height)
- Weight: 4.150 kg
| Users | Vehicles | Services | It is supplied with | |
| GK-7 of 60 | 60 | 60 | 200 | COMPACT 50K-12 COMPACT 50K-230 COMPACT 75K-230 COMPACT 100K-230 TOTEM 50K-230 |
| GK-7 of 130* | 130 | 130 | 500 | COMPACT 50K-230 COMPACT 75K-230 COMPACT 100K-230 TOTEM 50K-230 SHK-80 |
| GK-7 of 1000 | 1000 | 1000 | 1000 | SHK-80 SHK-110 SHK-80D SHK-110D |
*Communication with key maximum 200 services and 100 users
The equipment allows defining different situations to be adjusted to your requirements:
- User identification: we only identify the users. It is specially useful for cooperatives that want to identify only the person who is supplying.
- Vehicle identification: we only identify the vehicles. It is specially useful for installations where you only want to identify and control the vehicles and their consumption, without identifying the users.
- User and vehicle identification: It is the most complete system, offering a high level of security. It is specially useful for installations with a big number of users and/or vehicles, or where the users are often changing the vehicle.
Technical data:
- Voltage: 230 or 110 VAC (available version at 12/24 VDC)
- Built-in supply inlet filter
- Frontal: LCD Display alphanumeric of 4 lines and 20 characters
- Keypad of 14 keys
- Consumption: 30 W
- Service Temperature: from 0 ºC to 40 ºC
- Relative Air Humidity: among 20 and 80 %
- Built-in identification key reader
Controller features:
It controls:
- Supply date and hour
- Users
- Vehicles
- Supplied litres by users and/or vehicles
- Car mileage (or hours) and consumption
- Tank litre stock
- The services are saved in memory and can be transferred to a computer.
The inquiry and configuration operations can be made from the computer through the GKSuite software or directly from the supply kit if you have the code or the Supervisor key. Then you can:
- Type or delete user and/or vehicles;
- Assign or change codes or user and/or vehicle keys;
- Calibrate the kit;
- Consult the done supplies;
- Consult and regularize the tank stock;
- Configure communication and other controller options
- If you want to manage the kit through a computer the kit potential increases in:
- a more comfortable and efficient management of all typing, deletion, modification, and consult operations because they are done from the computer;
- adding the information generated by the kit in a data base;
- the possibility of exporting the information managed by the program to Excel and .txt (text) formats for its export to other data base systems or programs;
- the information access control through permissions for different user profiles;
- Multiconsole: with a computer, the GKSuite software and as many licences as controllers you want to control; you could manage different equipment, both local and remote, in a centralised way;
- different communication systems to connect the computer with the controller or controllers: via memory key, cable, Ethernet or GSM modem
Optional accessories:
– GK-7 identification key (pack of 10 units)
– Hexagonal pedestal base (height 1m)
– PC memory key converter
– 500 W ON-LINE UPS
– Communication kit via ZigBee-USB (wireless)
– Communication kit via ZigBee-Ethernet (wireless)
– Communication kit via MEMORY key (software + converter + 1 memory key)
*Communication with key maximum 200 services and 100 users
– Communication kit via USB CABLE (software + converter)
– Communication kit via ETHERNET (software + converter)
– Communication kit via GSM (software + converter)
– Proximity card
– Magnetic card
– TAG fixed disc identifier for vehicles
– TAG keyring identifier
| Memory key | USB Cable | Ethernet | GSM Modem | |
| GK-7 of 60 | Yes | Yes | Yes | Yes |
| GK-7 of 130 | 200 services | Yes | Yes | Yes |
| GK-7 of 1000 | No | Yes | Yes | Yes |
