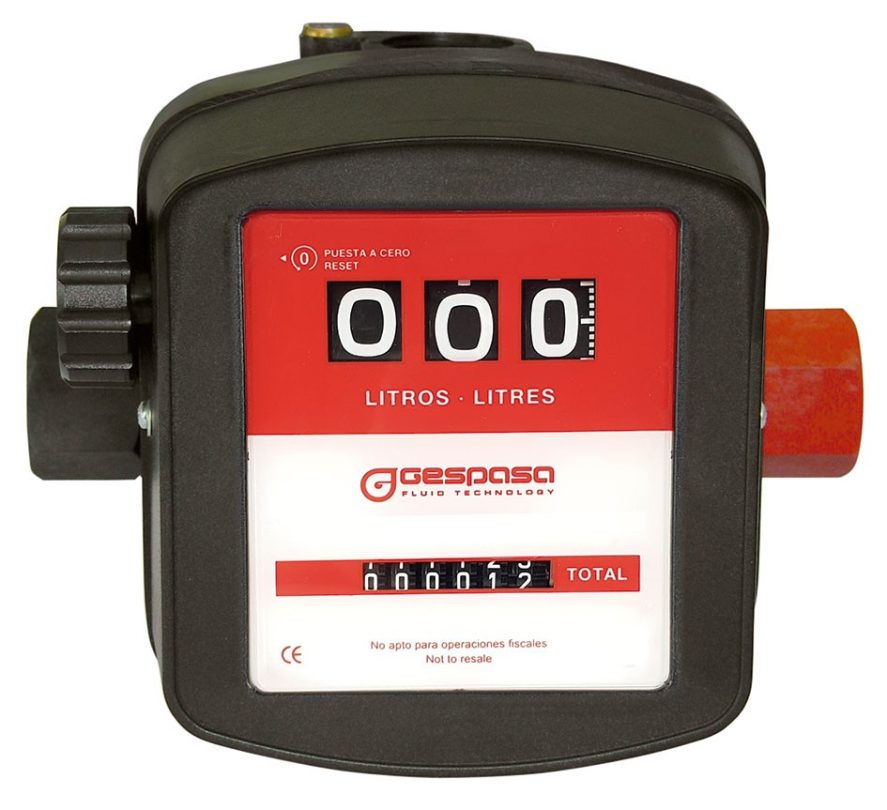

• Fireproof measuring chamber with oscillant disc
• Flow: 15-90 l/min
• Accuracy: ±1 %
• Partial indicator of 3 digits and totalizer of 6 digits
• Maximum operation pressure: 3,5 bar
• Maximum temperature: 60 ºC
• Minimum temperature: -10 ºC
• Polyamide + Fibreglass housing
• Connection 1″ GAS (BSP) with 3 inlets and 2 outlets
• It is supplied with 2 additional Male/Female 1″ GAS (BSP) adapters (other threads under order). The 1″ GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
• It is suitable for hydrocarbon liquid (please, consult other liquids).
• For private use, not suitable for fiscal operations

Size and weight (approx.):

• Dim.: 150x150x170 mm (length x width x height)
• Weight: 1.6 kg
