15-400 l/min · ±0.5% · F2″ BSP

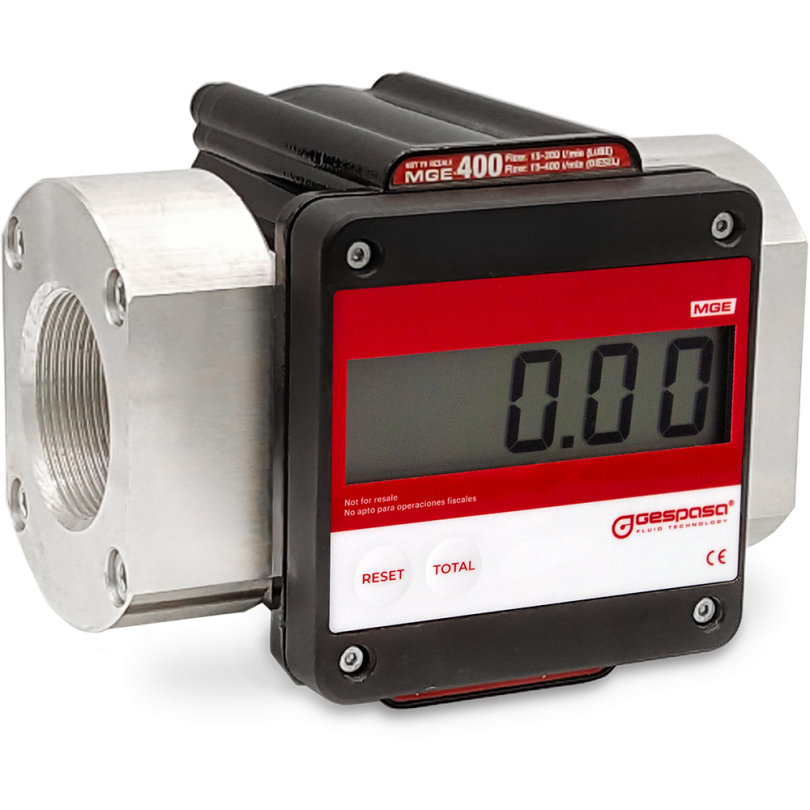

MGE-400 · Electronic gear meter
Meter made of high quality aluminium. Its measuring chamber allows to transfer all type of hydrocarbon and oils (please, consult other liquids).
It is for private use.
Technical data:
- Flow (approx.):
- 15-400 l/min (diesel)
- 15-300 l/min (lubricant)
- Tropicalised electronics
- 5-digit display
- It stores the litres of the last service.
- Maximum pressure: 45 bar
- Min./Max. temperature: -10 / +50 ºC
- Accuracy: ±0.5 %
- Inlet/outlet connection thread: Flange 2″ BSP
- Powered by button battery of long duration
- Low battery display
- It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.
Size and weight (approx.):
- Dim.: 193x145x141 mm (length x width x height)
- Weight: 4.3 kg
