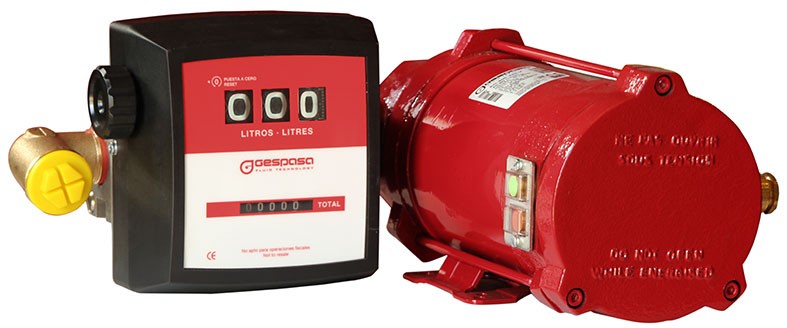

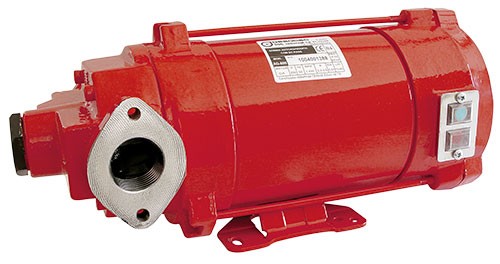

AG-800 230 VAC 70-80 l/min with Litre Meter & Base

• MG-80 Mechanical Meter
• Base No.4
• Self-suction – self-priming, explosionproof, eccentric with self-adjusting blades
• With recirculation bypass
• Suction: 2.7 m
• Priming pipe suction: 5 m
• Free flow: 70-80 l/min
• Consumption: 42-50 A
• Motor: 0.37 kW 12 VDC EExd
• 1,650 rpm
• S2 20´ operation
• IP-55 protection
• Operation temperature: -10 ºC · +40 ºC
• ATEX Class: II2G
• Protection mode (own supply): Ex h IIB T4 Gb
• With thermal protector
• Connection: through F1″ (BSP) threads and flanges
• ON/OFF switch
• 1.5 m cable
• Anti-rust treatment
