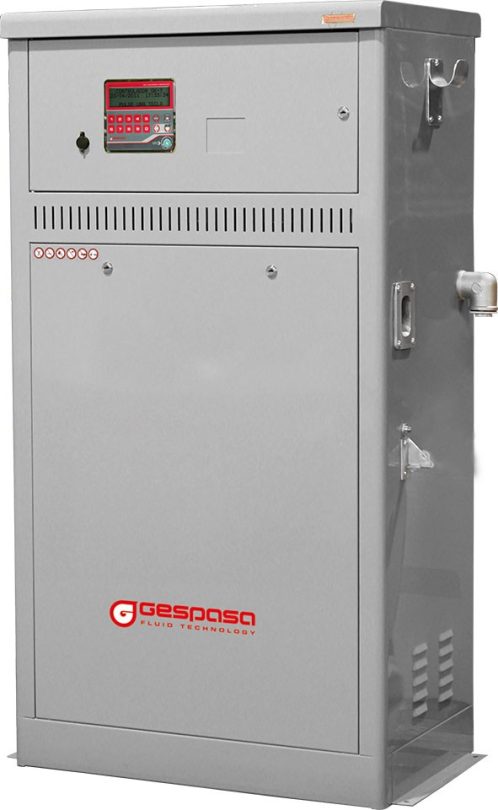

High flow 200 · 300 · 500 l/min Electronic
USE
- Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
- Designed for a “heavy duty use”.

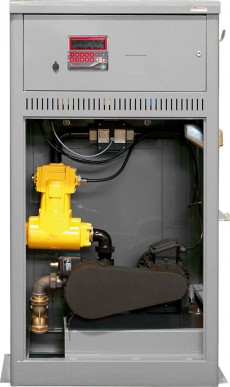

Composed of:
CHASSIS:
- Made of steel. Brilliant epoxid paint finish · Weatherproof
- It has built in an anchorage base.
PUMP:
- BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
- Flow: 200 to 500 l/min
METER:
- Volumetric Aluminium meter with oval gears and degasser in order to avoid the gas measuring
- Accuracy ±0.5 % (Ask for other models with high accuracy.)
- DISPLAY: LCD that shows the partial or total of the supplied litres. Keypad that allows to preset the amount to be supplied.
*OPTIONAL: GK-7 · Own consumption controller with user/vehicle identification and PC or cloud communication
It is supplied with:
- 4 m delivery diesel hose of double layer with couplings in both ends
- PA-250 · Automatic nozzle or manual nozzle (depending on the model)
- Dim.: 800x540x1,500 mm (length x width x height)
WITHOUT DEGASSER · ACCURACY ±0.5 %
SGE-200GE · HIGH FLOW ELECTRONIC DISPENSER · 200 l/min
26822-CF00000
Composed of:
- BDP-200 high flow blade pump · 2.2 kW · IP-55
- MGI-250 Pulser · Accuracy: ±0.5 %
- GE · Display with hose module
- PA-250 · Automatic nozzle
SGE-300GE · HIGH FLOW ELECTRONIC DISPENSER · 300 l/min
26820-CF00000
Composed of:
- BDP-200 high flow blade pump · 2.2 kW · IP-55
- MGI-400 Pulser · Accuracy: ±0.5 %
- GE · Display with hose module
- PE-010 · Manual nozzle
WITH MESH FILTER AND DEGASSER · ACCURACY ±0.2 %
STE-200GE · HIGH FLOW ELECTRONIC DISPENSER · 200 l/min
26825-CF00000
Composed of:
- BDP-200 high flow blade pump · 2.2 kW · IP-55
- M-40 Volumetric high flow meter · Accuracy: ±0.2 %
- GE · Display with hose module
- PA-250 · Automatic nozzle
STE-300GE · HIGH FLOW ELECTRONIC DISPENSER · 300 l/min
26821-CF00000
Composed of:
- BDP-300 high flow blade pump · 2.2 kW · IP-55
- M-50 Volumetric high flow meter · Accuracy: ±0.2 %
- GE · Display with hose module
- PE-010 · Manual nozzle
STE-500GE · HIGH FLOW ELECTRONIC DISPENSER · 500 l/min
26826-CF00000
Composed of:
- BDP-500 high flow blade pump · 4 kW · IP-55
- M-50 Volumetric high flow meter · Accuracy: ±0.2 %
- GE · Display with hose module
- ZV500 · Manual nozzle
