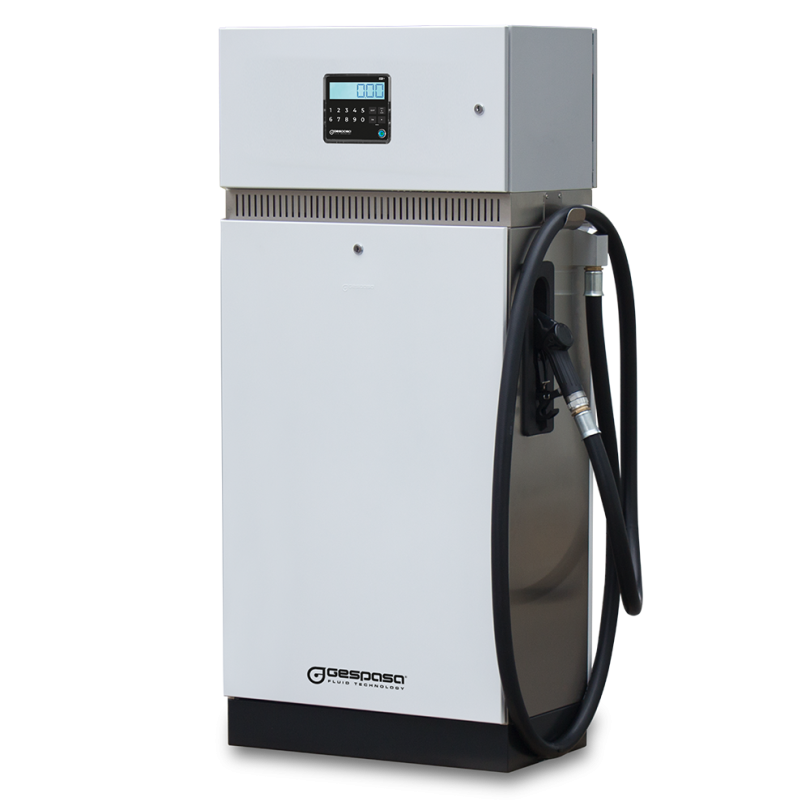

• Supply kit composed of two hydraulic pumps with piston meters.
• It is designed for mixing diesel with oil to get mixed biodiesel.
• It has an inlet of two independent liquids and supply of the mixed fluid.
• Interior switch to supply 100% diesel or 100% oil.
• The mixing selection to be supplied is made through a pulser and a display that there is in its interior.
• You could supply any percentage among 5 and 95%.

Mixing selection:

• The mixing selection is automatically made when the vehicle is identified.
• When the vehicle is typed, you will assign a percentage of mixing to be made.
• Each vehicle can have assigned a different mixing percentage.
• When the user identifies the vehicle in the kit, this will automatically supply the assigned mixing percentage.
• Optional: thermal printer

Composed of:

CHASSIS

• Made of steel
• Special interior and exterior treatment against corrosion
• Finish with epoxid brilliant paint
• Weatherproof

HYDRAULIC GROUP composed of:

• Pump: Self-suction, eccentric with self-adjusting blades with gas separator · Flow: 70-90 l/min · Recirculation bypass valve · Anti-return valve · Filter
• Meter: Made of aluminium of 4 pistons with positive moving · Accuracy: 0.2 % · Pulser of 2 channels of 100 pulses per litre and mechanical totalizer
• Motor: 2 motors of 1 kW 230/400 VAC · EExd with ATEX certificate, 3 ph, with IP-55 protection
  • * Optionally it could be supplied with single-phase motors of 0.90 kW 230 VAC · EExd with ATEX certificate, with IP-55 protection

• Mixing system

CONTROLLER

• GK-7 own consumption

It is supplied with:

• 4 m delivery diesel hose Ø25 mm double layer with adapters on both ends
• PA-80 automatic nozzle with rotary swivel
