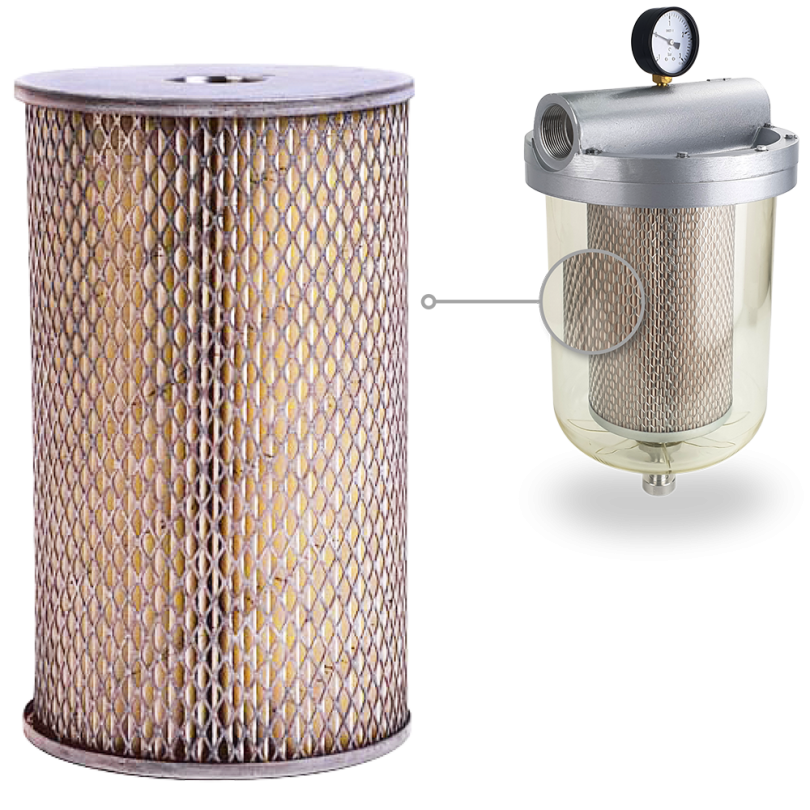

• These microlfilters are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model).
• Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve.
• It has built in a vacuum gauge.

Technical data:

• Volume: 10 litres
• Filtration:
  • diesel and petrol: 5 µm (micron) (with water separation at 93 %)
  • biodiesel: 25 µm (micron)
  • diesel · water absorbent: 15 µm (micron)
• Max. flow: 160 l/min
• Max. working pressure: 4 bar
• Vessel breaking pressure: 8 bar
• Temperature: -10 ºC · + 50 ºC
• Filter cover: aluminium casting
• Transparent vessel: PA
• Inlet / Outlet: F1 1/2″ GAS (BSP)
• Manual lower drain valve to empty impurities
• Automatic degasser
• Installation: on the pumping kit suction or delivery

Size and weight (approx.):

• Size: 260×435 mm (Ø x height)
• Weight: 8 kg
